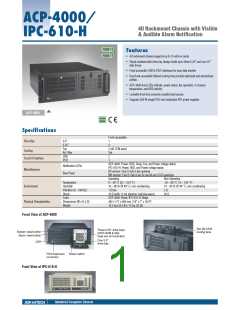

ACP-4000 / IPC-610-H
Dimensions
Unit: mm (inch)
101.6
[4.00]
177.0 [6.97]
523.1 [20.59]
478.6 [18.84]
92.0 92.0 92.0 98.0
[3.62] [3.62][3.62] [3.86]
Power Supply Options
Specifications
Part Number
Watt
Input
Output
Mini-load
Safety
MTBF
+5 V @ 30 A,+3.3 V @ 28 A
+12 V @ 15 A,-12 V @ 0.8 A
-5 V @ 0.3 A,+5 Vsb @ 2 A
+5 V @ 35 A, +3.3 V @ 28 A
+12 V @ 30 A, -12 V @ 0.8 A
-5 V @ 0.5 A, +5 Vsb @ 2 A
AC 100 ~ 240 V
(full range)
+5 V @ 0.5 A
+12 V @ 0.5 A
PS-300ATX-ZBE (ATX, PFC)
PS-400ATX-ZBE (ATX, PFC)
300 W
UL/TUV/CB/CCC
100,000 hours @ 25° C
+5 V @ 3 A
AC 100 ~ 240 V
(full range)
400 W
300 W
300 W
+12 V @ 1 A
+5 Vsb @ 0.1 A
+5 V @ 3 A
+3.3 V @ 1 A
+12 V @ 2 A
+5 Vsb @ 0.1 A
+5 V @ 0.3 A,
+3.3 V @ 0.3 A,
+12 V @ 0.2 A
UL/TUV/CB/CCC
91,000 hours @ 25° C
+5 V @ 25 A, +3.3 V @ 18 A
+12 V @ 16 A, -12 V @ 0.5 A
-5 V @ 0.5 A, +5 Vsb @ 2 A
AC 100 ~ 240 V
(full range)
RPS-300ATX-ZE (ATX, PFC)
PS-300ATX-DC48E (ATX)
Accessories
UL/TUV/CB/CCC
UL/TUV/CB/CCC
100,000 hours @ 25° C
100,000 hours @ 25° C
+3.3 V @ 28 A, +5 V @ 30 A,
+12 V @ 15 A, -5 V @ 0.3 A,
-12 V @ 0.8 A, +5 Vsb @ 2 A
DC -48 V
Ordering Information
Motherboard/
Backplane
Part Number
19914K0010
Description
Part Number
Power Supply
Regulation
Door filter 97.6 x 36.6 x 5 mm
BP version
1999615000
Fan filter 115 x 195 x 5 mm
Black 3.5" FDD
Black 5.25" 52X CD-ROM
Black 5.25" 16X/40X/24X DVDRW-ROM
ATX 24P/20P + 4P + 8P 60cm cable (connecting from
power supply to alarm board for ACP-4000)
ATX 24P/20P + 4P + 15P 60cm (connecting from power
supply to LED board for IPC-610-H)
Two Mini DIN (connect to MB) / 6P (connect to front I/O
board) PS2 KB/Mouse cable
Without power supply,
with ATX switch
PS-300ATX-ZBE
Without power supply,
with ATX switch
96FDD-144-TE-B1
96CD-52X-I-AS-B3
96DVR-40X-I-AS-B
ACP-4000BP-00XE
ACP-4000BP-30ZE
IPC-610BP-00XHE
-
-
-
-
-
CE
-
1700006915
1700006916
1700006917
IPC-610BP-30ZHE
MB version
PS-300ATX-ZBE
CE
Without power supply, with
ATX switch
PS-300ATX-ZBE
Without power supply, with
ATX switch
ACP-4000MB-00XE
ACP-4000MB-30ZE
IPC-610MB-00XHE
IPC-610MB-30ZHE
-
-
-
-
-
CE
-
* If users use AIMB-763 or 3rd party motherboard, they need to purchase 1700006915
or 1700006916 for the front voltage LEDs to function correctly. And they also need to
purchase 1700006917 to make front PS/2 function correctly.
PS-300ATX-ZBE
CE
Online Download
www.advantech.com/products
