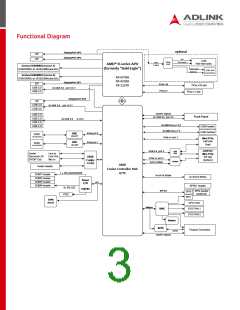

Functional Diagram
optional
DisplayPort DP2
DisplayPort DP3
DP
DP
DDC
LVDS
Fine Wire Conn.
eDP to
LVDS
LVDS Dat/Clk
eDP
2 lane
AMD® R-series APU
(formerly "Bald Eagle")
Verꢀcal SODIMM (channel A)
8 GB DDR3L at 1333/1600 (non ECC)
LVDS control
Brightness
LVDS AUX
Connector
Vertical SODIMM (channel B)
8 GB DDR3L at 1333/1600 (non ECC)
RX-427BB
RX-425BB
RX-225FB
DisplayPort DP1
DP
PCIe x16
PCIe x1
PCIe x16 slot
PCIe x1 slot
USB 3.0
USB 3.0
2x USB 3.0 port 10/11
DisplayPort DP0
DP
USB 3.0
USB 3.0
2x USB 3.0 port 12/13
System Signals
USB 2.0
USB 2.0
USB 2.0
USB 2.0
Front Panel
2x USB 2.0 port 4/5
4x USB 2.0
0/1/2/3
2x USB 2.0 port 6/7
USB Header
1x USB 2.0 port 8
PCIe x1 port 3
USB Vertical
PCIe port 0
PCIe port 1
GbE
RJ45
i211AT
10/100/1000
MinI PCIe
half size
(top)
GbE
i211AT
RJ45
10/100/1000
USB
mSATA /
Mini PCIe
full size
USB 2.0 port 9
HUB
Center
Surround L/R
S/PDIF Out
Line In
Line Out
Mic In
HDA
Codec
ALC886
PCIe x1 port 2
(bottom)
Switch
SATA 6Gb/s
AMD
Fusion Controller Hub
A77E
Audio Header
1 x RS-232/422/485
3x RS-232
COM1 header
COM2 header
COM3 header
COM4 header
3x SATA 6Gb/s
3x SATA 6Gb/s
Super
I/O
LPC
SPI0/1 header
IT8783
SPI 0/1
SPI2 socket
(optional)
SPI0
SPI1
PS/2
TPM
Atmel
CPU FAN
SMbus
BMC
SYS FAN 1
SYS FAN 2
Sensor
GPIO
System signals
Feature Connector
GPIO
ADLINK [ ADLINK ]
