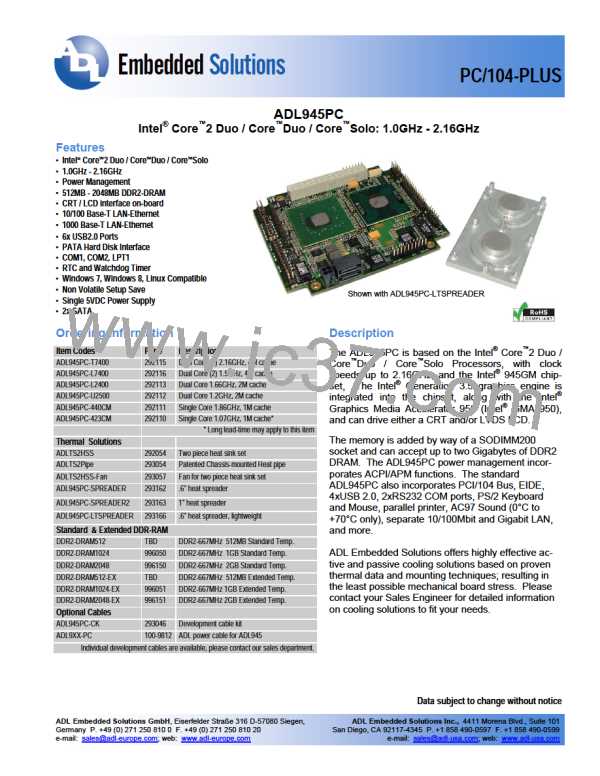

Embedded Solutions
PC/104-PLUS

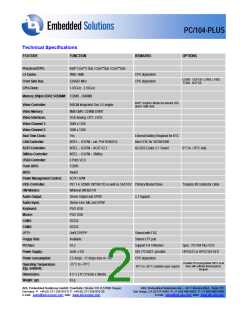

Technical Specifications
FEATURE
FUNCTION
REMARKS
OPTIONS
Processor/CPU:
L2-Cache:
Intel® Core™2 Duo / Core™Duo / Core™Solo
2MB / 4MB
CPU dependent
CPU dependent
U2500 - 533FSB / L2400, L7400,
T7400 - 667FSB
Front Side Bus:
CPU-Clock:
533/667 MHz
1.07GHz - 2.16GHz
Memory 200pin DDR2 SODIMM: 512MB - 2048MB
Intel® Graphics Media Accelerator 950
(Intel® GMA 950)
Video Controller:
945GM integrated Gen 3.5 engine
Video Memory:
Video Interfaces:
Video Channel 1:
Video Channel 2:
Real Time Clock:
LAN-Controller:
AC97-Controller:
SMBus-Controller:
USB2-Controller:
Flash BIOS:
8MB UMA / 224MB DVMT
VGA-Analog, CRT, LVDS
2048 x 1536
1600 x 1200
Yes
External Battery Required for RTC
Intel 573E for 10/100/1000
ALC655 Codec 5.1 Sound
INTEL – ICH7M – ext. PHY 82562GZ
INTEL – ICH7M – AC97 V2.3
INTEL – ICH7M – SMBus
6 Ports V2.0
0°C to +70°C only
512KB
BIOS:
Award
Power Management Control:
EIDE-Controller:
HW-Monitor:
ACPI / APM
PIO 1-4, UDMA 100*/66*/33 as well as SATA1/2 Primary Master/Slave
Winbond W83627HF
*requires 80 conductor cable
Audio Output:
Audio Input:
Stereo Output and SPDif
Stereo-Line, Mic and SPDif
PS/2-USB
5.1 Support
Keyboard:
Mouse:
PS/2-USB
COM1:
RS232
COM2:
RS232
LPT1:
Uni/ECP/EPP
Available
Shared with FDC
Floppy Disk:
Shared LPT port
PCI-Bus:
V2.2
Support For 4 Masters
ADL PS104CF possible
CPU dependent
Spec: PC/104 Plus V2.0
Power Supply:
Power consumption:
5volt +/-5%
HPS3512 or HPSC104-SER
2.5 Amps - 11 Amps max @ +5V
-25°C to +70°C
Provided CPU is kept below 100°C at all
times with sufficient thermal path to
dissipate
Operating Temperature:
(typ. ambient)
-40°C to +85°C available upon request
Dimensions:
Weight: (gr)
4.5” x 3.8” (115mm x 96mm)
93 g
Data subject to change without notice
