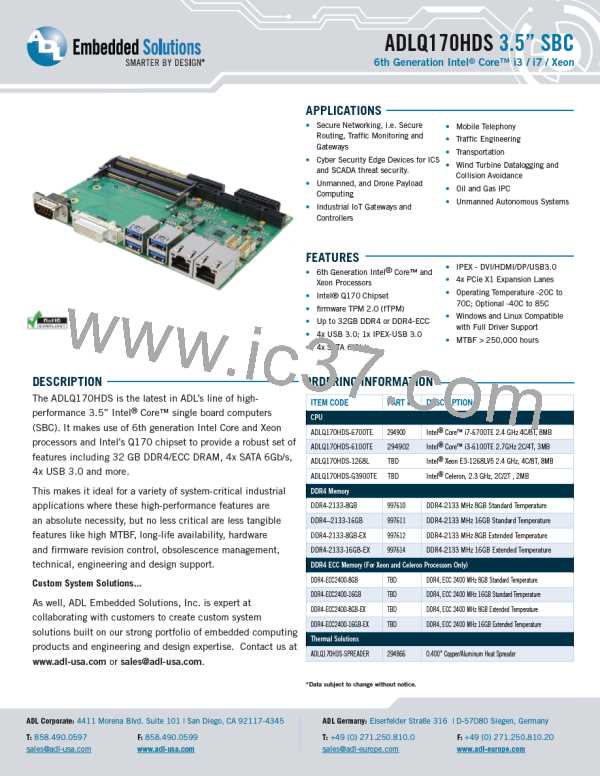

ADLQ170HDS 3.5” SBC
6th Generation Intel® Core™ i3 / i7 / Xeon
TECHNICAL SPECIFICATIONS - ADLQ170HDS
FEATURE
CPU
FUNCTION
NOTES
CPU
6th Generation Intel Core, Xeon an Celeron Processors
LGA1151
Dual and Quad Core variants.
Socket
Chipset
Chipset
Includes mechanical retention plate.
Intel Q170
Via BIOS-API:CPU and Board Temperature; Board Voltages;
Watchdog; Fan Speed; GPIO Control; Boot History
Linux and Windows BIOS-API Drivers Avalable.
Linux kernel 3.0+ Required.
Hardware Monitoring
Memory
Type
2x SODIMM260 1.2V DDR4
32 GB
ECC Compatible
Max. Memory
Graphic
Controller
Video BIOS
Memory
CPU Integrated
Intel Extreme BIOS
Max 512MB DVMT
-
CRT
DVI
DVI/HDMI 1.4
1/1/1
DVI/HDMI/DisplayPort
2 Connectors: 1x DVI/HDMI; 1xIPEX DVI/HDMI/DP
HDMI 1.4:
2560x1600 @ 60Hz; 4096x2160 @ 24Hz
LCD Resolution
DisplayPort: 4096x2304 @ 60Hz
DVI:
1920x1200 @ 60Hz
BIOS
Manufacturer
AMI Aptio
APM/ACPI
128 Mbit SPI-Flash
Power Management APM/ACPI
Speedstep/ATM
Powerstates S0/S1/S3/S4/S5
Security
Speedstep supported
S0/S1/(S3)/S4/S5
Adjustable Fixed Frequency Available
Via Intel PTT
firmware TPM 2.0 (fTPM)
I/O
LAN1
10/100/1000 Intel Q170/i219 Phy
10/100/1000 Intel i210
4x SATA 6Gb/s
PXE Boot and WOL (Wake-On-LAN)
LAN2
SATA
SATA RAID
USB 2.0
0/1/5/10
11x (6x Onboard + 5x USB 3.0)
5x
USB 3.0 is Backward Compatible to USB 2.0
4x Front Side; 1x IPEX Connector
USB 3.0
COM 1
RS232 (RSD/TXD/TRS/CTS)
OTHER FUNCTIONS
Watchdog
GPIO
Yes
8 bit
Input Power
3.3V, 5V, 5VS (12V for FAN)
*Data subject to change without notice.
