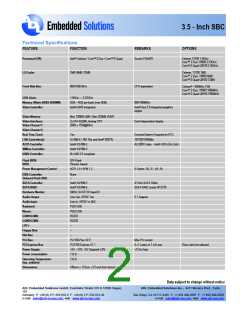

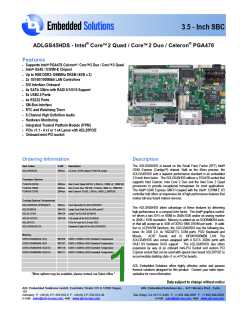

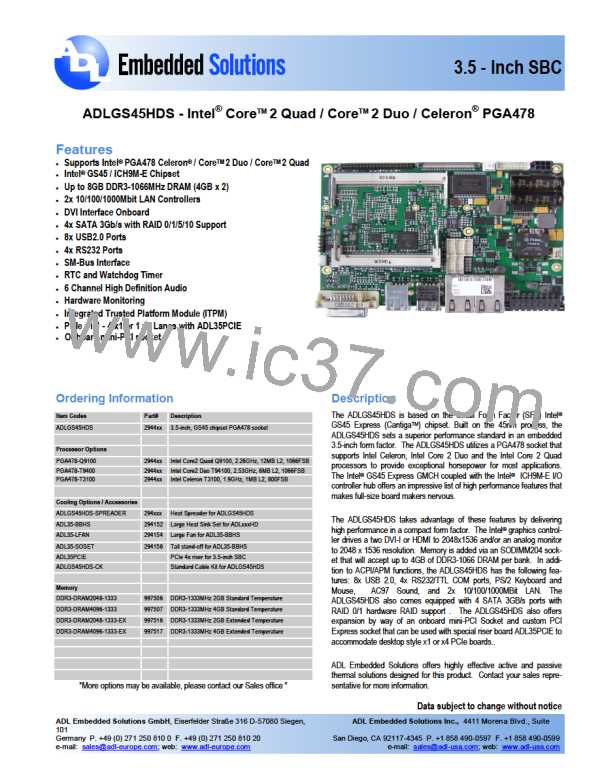

3.5 - Inch SBC
Technical Specifications
FEATURE
FUNCTION
REMARKS
OPTIONS
Processor/CPU:
Intel® Celeron / CoreTM 2 Duo / CoreTM 2 Quad
1MB /6MB /12MB
Socket PGA478
Celeron T3100 1.9GHz
Core™ 2 Duo T9400 2.53GHz
CoreTM 2 Quad Q9100 2.26GHz
L2-Cache:
Celeron: T3100 1MB
Core™ 2 Duo: T9400 6MB
CoreTM 2 Quad Q9100 12MB
Celeron® - 800MHz FSB
Core™ 2 Duo: T9400 1066MHz
CoreTM 2 Quad Q9100 1066MHz
Front Side Bus:
800/1066 MHz
CPU dependent
800/1066MHz
CPU-Clock:
1.9GHz — 2.53GHz
Memory 204pin DDR3 SODIMM:
Video Controller:
2GB – 4GB per bank (max 8GB)
Intel® GS45 integrated
Intel® Gen 5.0 integrated graphics
engine
Video Memory:
Max 128MB UMA / Max 352MB DVMT
Video Interfaces:
Video Channel 1:
2x DVI-I/HDMI, Analog CRT
2048 x 1536@60Hz
Dual Independent display
Video Channel 2:
Real Time Clock:
LAN-Controller(s):
AC97-Controller:
SMBus-Controller:
USB2-Controller:
Yes
External Battery Required for RTC
10/100/1000Mbit
ALC889 Codec - Intel® HDA (2ch, 6ch.)
ICH9M-E / 567 Phy and Intel® 82574L
Intel® ICH9M-E
Intel® ICH9M-E
8x USB 2.0 compliant
Flash BIOS:
BIOS:
SPI-Flash
Phoenix Award
Power Management Control:
ACPI 3.0 / APM 1.2
S-States: S0, S1, S4, S5
EIDE-Controller:
Onboard Flash SSD:
None
--
SATA Controller:
SATA RAID:
Intel® ICH9M-E
Intel® ICH9M-E
4 Ports SATA 3Gb/s
SATA RAID Levels 0/1/5/10
Hardware Monitor:
Audio Output:
Audio Input:
Keyboard:
SMSC SCH3114 SuperIO
Line Out, SPDIF Out
5.1 Support
Line In, SPDIF In, MIC
PS/2-USB
Mouse:
PS/2-USB
COM1/COM2:
COM3/COM4:
LPT1:
RS232
RS232
--
Floppy Disk:
ISA-Bus:
--
--
PCI-Bus:
PC/104-Plus V2.0
PCI/104-Express V1.1
+5V, +12V, +5V Suspend ±5%
T.B.D.
Mini-PCI socket
4 x1 Lanes or 1 x4 Lane
+12 for fans
PCI Express Bus
Power Supply:
Power consumption:
Riser card slot onboard
Operating Temperature:
(typ. ambient)
T.B.D.
Dimensions:
146mm x 112mm (3.5-inch form factor)
Data subject to change without notice
