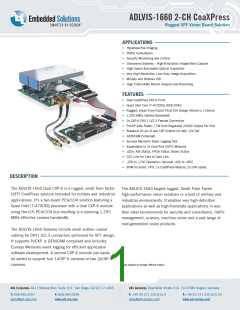

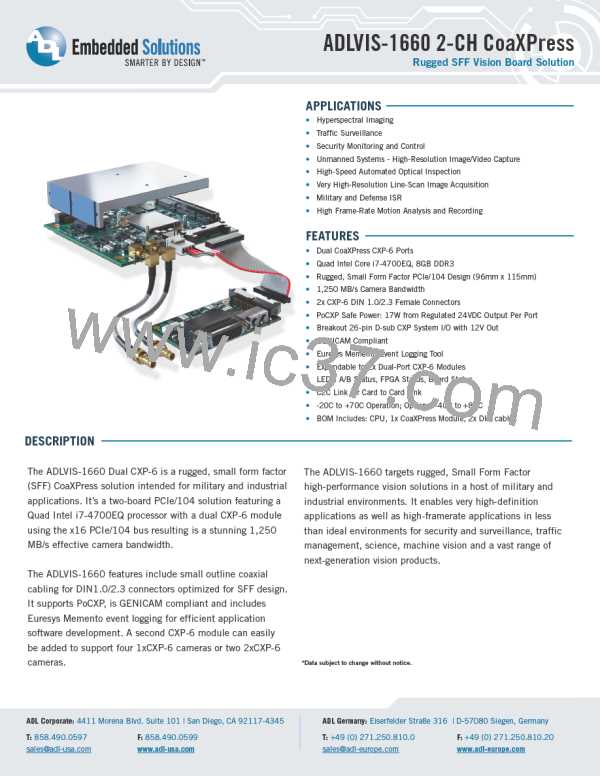

ADLVIS-1660 2-CH CoaXPress
Rugged SFF Vision Board Solution

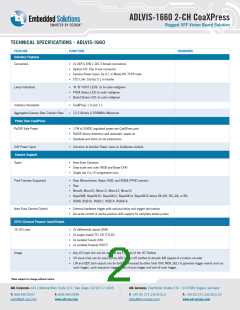

TECHNICAL SPECIFICATIONS - ADLVIS-1660
FEATURE
FUNCTION
REMARKS
Interface Features
Connectors
•
•
•
•
2x CXP-6 DIN 1.0/2.3 female connectors
System I/O: 26p D-sub connector
Camera Power Input: 4p 0.1 in Molex KK 7478 male
C2C Link: 2x3 6p 0.1 in header
Lamp Indicators
•
•
•
‘A’ ‘B’ HOST LEDS: 2x bi-color red/green
FPGA Status LED: bi-color red/green
Board Status LED: bi-color red/green
Interface Standards
•
•
CoaXPress 1.0 and 1.1
Aggregated Camera Data Transfer Rate
• Power Over CoaXPress
PoCXP Safe Power
12.5 Gbits/s (1250MB/s) Maximum
•
•
•
17W of 24VDC regulated power per CoaXPress port
PoCXP device detection and automatic power-on
Overload and short-circuit protections
24V Power Input
• Camera Support
Types
•
Connects to Auxiliar Power input on CoaXpress module
•
•
•
Area-Scan Cameras:
Gray-scale and color (RGB and Bayer CFA)
Single-tap (1x-1Y) progressive scan
Pixel Formats Supported
•
•
•
•
•
Raw, Monochrome, Bayer, RGB, and RGBA (PFNC names):
Raw
Mono8, Mono10, Mono12, Mono14, Mono16
BayerXX8, BayerXX10, BayerXX12, BayerXX14, BayerXX16 where XX=GR, RG, GB, or BG
RGB8, RGB10, RGB12, RGB14, RGBA16
Area Scan Camera Control
•
•
External hardware trigger with optional delay and trigger decimation
Accurate control of strobe position with support for early/late strobe pulses
GPIO (General Purpose Input/Output
10 I/O Lines
•
•
•
•
2x differential inputs (DIN)
2x single-ended TTL I/O (TTLIO)
4x Isolated Inputs (IIN)
2x Isolated Outputs (IOUT)
Usage
•
•
•
Any I/O input line can be used by any LIN tool of the I/O Toolbox
I/O input lines can be used by any QDC tool in I/O toolbox to decode A/B signals of a motion encoder
LIN and QDC tool outputs can be further processed by other tools (DIV, MDV, DEL) to generate trigger events such as:
cycle trigger, cycle sequence trigger, start-of-scan trigger and end-of-scan trigger.
*Data subject to change without notice.
