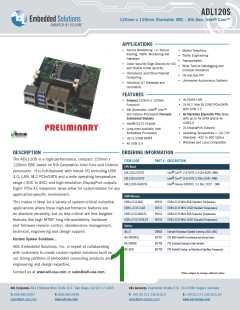

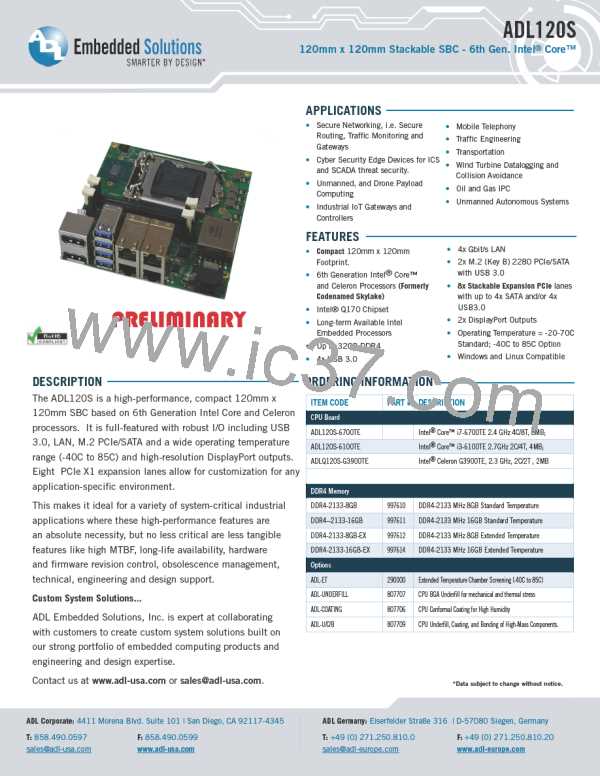

ADL120S
120mm x 120mm Stackable SBC - Intel® Core™

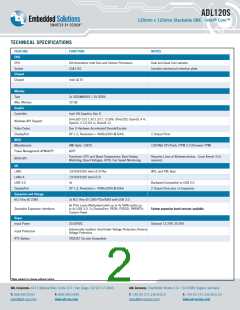

TECHNICAL SPECIFICATIONS
FEATURE
CPU
FUNCTION
NOTES
CPU
6th Generation Intel Core and Celeron Processors
LGA1151
Dual and Quad Core variants.
Socket
Chipset
Chipset
Includes mechanical retention plate.
Intel Q170
Memory
Type
2x SODIMM260 1.2V DDR4
32 GB
Max. Memory
Graphic
Controller
Intel HD Graphics Gen 9
Direct3D 12/11.3/11.2/11.1/10/9; /Direct2D; OpenGL 4.4;
OpenCL 2.1/2.0/1.2; DirectX 12
Windows API Support
Video Codec
Gen 9 Hardware Accelerated Decode/Encode
DP 1.2; Resolution = 4096x2304 @ 60Hz
DisplayPort
2 Output Ports
BIOS
Manufacturer
Power Management APM/ACPI
AMI Aptio (UEFI)
ACPI
128 Mbit SPI-Flash; fTPM 2.0 (firmware TPM)
Functions: CPU and Board Temperature; Boot History;
Watchdog, Board Voltages; GPIO, Fan Speed Monitoring
Requires Linux or Windows drivers. Linux Kernel 3.0+
required.
BIOS-API
I/O
LAN1
10/100/1000 Intel i219 Phy
10/100/1000 Intel i210
4x
WOL and PXE Boot
LAN2-4
USB 3.0
Backward Compatible to USB 2.0
2 Output Ports plus 1x Expansion
DisplayPort
Expansion and Storage
M.2 (Key B) 2280
DP 1.2; Resolution = 4096x2304 @ 60Hz
2x M.2 (Key B) 2280 PCIe/SATA with USB 3.0
8x PCIe Lanes Multiplexed with up to 4x SATA and/or up
to 4x USB 3.0; 1x DisplayPort; PSON, PGOOD, PWRBTN;
Custom Power
Stackable Expansion Interfaces
Custom expansion board services available.
Power
Input Power
20-30VDC
Optional 12-24V; 20-36V
Galvanically Isolated, Over/Under Voltage Protection; Reverse
Voltage Protection
Input Protection
RTC Battery
CR2032 Circular Compatible
*Data subject to change without notice.
