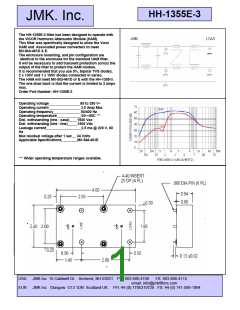

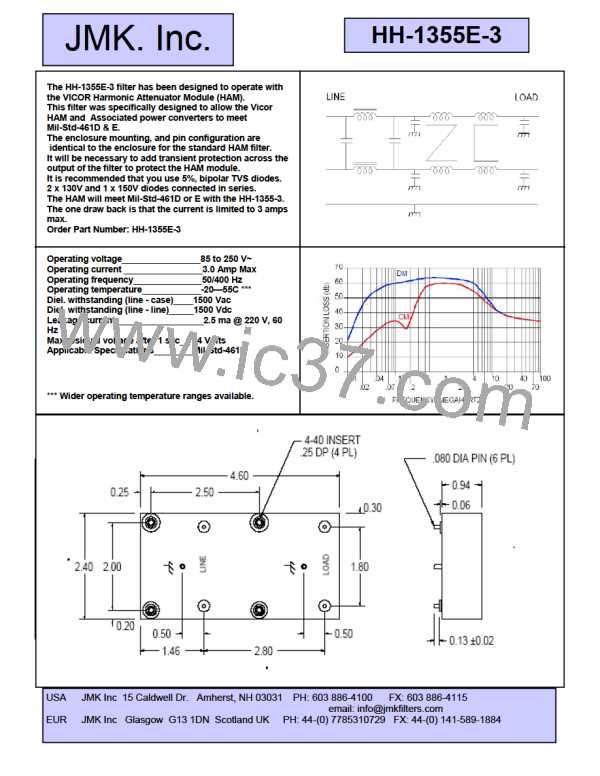

JMK. Inc.
The HH-1355E-3 filter has been designed to operate with
the VICOR Harmonic Attenuator Module (HAM).
This filter was specifically designed to allow the Vicor
HAM and Associated power converters to meet
Mil-Std-461D & E.
The enclosure mounting, and pin configuration are
identical to the enclosure for the standard HAM filter.
It will be necessary to add transient protection across the
output of the filter to protect the HAM module.
It is recommended that you use 5%, bipolar TVS diodes.
2 x 130V and 1 x 150V diodes connected in series.
The HAM will meet Mil-Std-461D or E with the HH-1355-3.
The one draw back is that the current is limited to 3 amps
max.
Order Part Number: HH-1355E-3
Operating voltage________________85 to 250 V~
Operating current ________________3.0 Amp Max
Operating frequency______________50/400 Hz
Operating temperature____________-20—55C ***
Diel. withstanding (line - case)____1500 Vac
Diel. withstanding (line - line)_____1500 Vdc
Leakage current__________________2.5 ma @ 220 V, 60
Hz
Max residual voltage after 1 sec__ 34 Volts
Applicable Specifications________Mil-Std-461E
HH-1355E-3
*** Wider operating temperature ranges available.
USA
EUR
JMK Inc 15 Caldwell Dr. Amherst, NH 03031
JMK Inc Glasgow G13 1DN Scotland UK
PH: 603 886-4100
FX: 603 886-4115
email: info@jmkfilters.com
PH: 44-(0) 7785310729 FX: 44-(0) 141-589-1884
JMK [ JMK INC. ]
