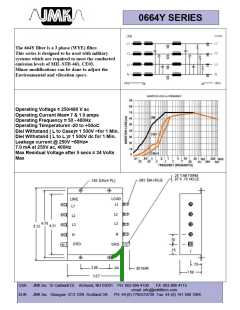

0664Y SERIES
The 664Y filter is a 3 phase (WYE) filter.
This series is designed to be used with military
systems which are required to meet the conducted
emission levels of MIL-STD-461, CE03.
Minor modifications can be done to adjust the
Environmental and vibration specs.
Operating Voltage = 250/480 V ac
Operating Current Max= 7 & 1 0 amps
Operating Frequency = 50 - 400Hz
Operating Temperature= -20 to +50oC
Diel Withstand ( L to Case)= 1 500V ~for 1 Min.
Diel Withstand ( L to L )= 1 500V dc for 1 Min.
Leakage current @ 250V ~60Hz=
7.0 mA at 250V ac, 400Hz
Max Residual Voltage after 5 secs = 34 Volts
Max
USA
EUR
JMK Inc 15 Caldwell Dr. Amherst, NH 03031
JMK Inc Glasgow G13 1DN Scotland UK
PH: 603 886-4100
FX: 603 886-4115
email: info@jmkfilters.com
PH: 44-(0) 7785310729 Fax: 44-(0) 141 589 1884
