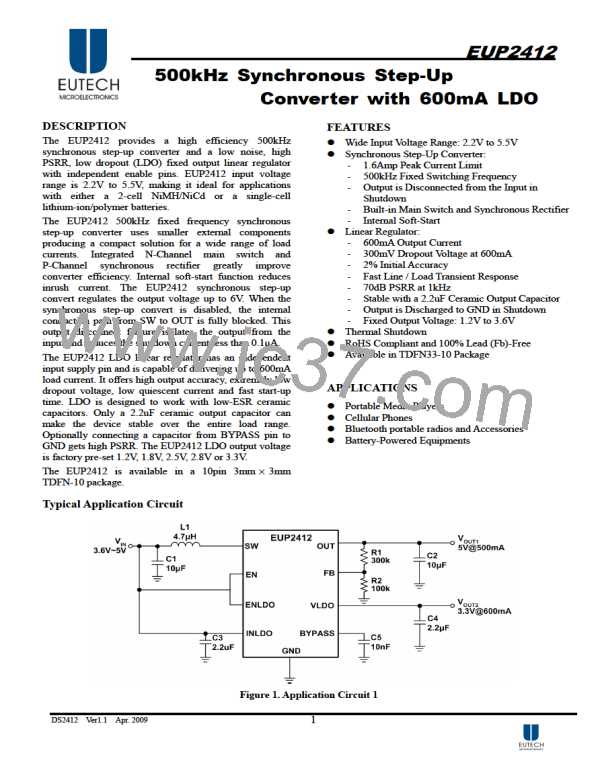

EUP2412
500kHz Synchronous Step-Up
Converter with 600mA LDO
DESCRIPTION
FEATURES
The EUP2412 provides a high efficiency 500kHz
synchronous step-up converter and a low noise, high
PSRR, low dropout (LDO) fixed output linear regulator
with independent enable pins. EUP2412 input voltage
range is 2.2V to 5.5V, making it ideal for applications
with either a 2-cell NiMH/NiCd or a single-cell
lithium-ion/polymer batteries.
z
z
Wide Input Voltage Range: 2.2V to 5.5V
Synchronous Step-Up Converter:
-
-
-
1.6Amp Peak Current Limit
500kHz Fixed Switching Frequency
Output is Disconnected from the Input in
Shutdown
-
-
Built-in Main Switch and Synchronous Rectifier
Internal Soft-Start
The EUP2412 500kHz fixed frequency synchronous
step-up converter uses smaller external components
producing a compact solution for a wide range of load
currents. Integrated N-Channel main switch and
P-Channel synchronous rectifier greatly improve
converter efficiency. Internal soft-start function reduces
inrush current. The EUP2412 synchronous step-up
convert regulates the output voltage up to 6V. When the
synchronous step-up convert is disabled, the internal
conduction path from SW to OUT is fully blocked. This
output disconnect feature isolates the output from the
input and reduces the shutdown current less than 0.1µA.
The EUP2412 LDO linear regulator has an independent
input supply pin and is capable of delivering up to 600mA
load current. It offers high output accuracy, extremely low
dropout voltage, low quiescent current and fast start-up
time. LDO is designed to work with low-ESR ceramic
capacitors. Only a 2.2uF ceramic output capacitor can
make the device stable over the entire load range.
Optionally connecting a capacitor from BYPASS pin to
GND gets high PSRR. The EUP2412 LDO output voltage
is factory pre-set 1.2V, 1.8V, 2.5V, 2.8V or 3.3V.
z
Linear Regulator:
-
-
-
-
-
-
-
-
600mA Output Current
300mV Dropout Voltage at 600mA
2% Initial Accuracy
Fast Line / Load Transient Response
70dB PSRR at 1kHz
Stable with a 2.2uF Ceramic Output Capacitor
Output is Discharged to GND in Shutdown
Fixed Output Voltage: 1.2V to 3.6V
z
z
z
Thermal Shutdown
RoHS Compliant and 100% Lead (Fb)-Free
Available in TDFN33-10 Package
APPLICATIONS
z
z
z
z
Portable Media Players
Cellular Phones
Bluetooth portable radios and Accessories
Battery-Powered Equipments
The EUP2412 is available in a 10pin 3mm × 3mm
TDFN-10 package.
Typical Application Circuit
Figure 1. Application Circuit 1
