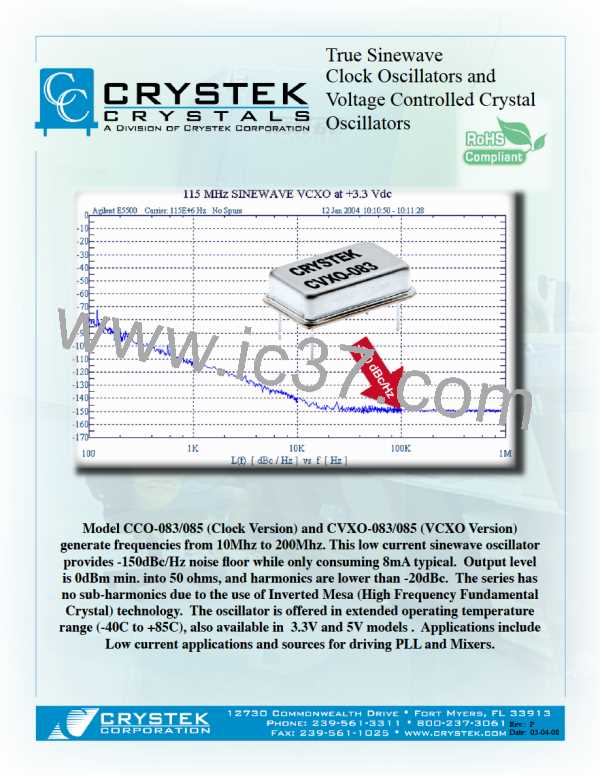

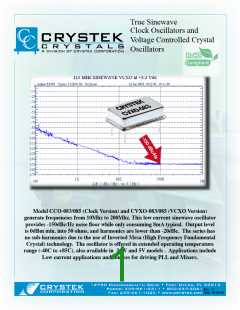

True Sinewave
Clock Oscillators and
Voltage Controlled Crystal
Oscillators
Model CCO-083/085 (Clock Version) and CVXO-083/085 (VCXO Version)
generate frequencies from 10Mhz to 200Mhz. This low current sinewave oscillator
provides -150dBc/Hz noise floor while only consuming 8mA typical. Output level
is 0dBm min. into 50 ohms, and harmonics are lower than -20dBc. The series has
no sub-harmonics due to the use of Inverted Mesa (High Frequency Fundamental
Crystal) technology. The oscillator is offered in extended operating temperature
range (-40C to +85C), also available in 3.3V and 5V models . Applications include
Low current applications and sources for driving PLL and Mixers.
Rev.: F
Date: 03-04-08
